Description

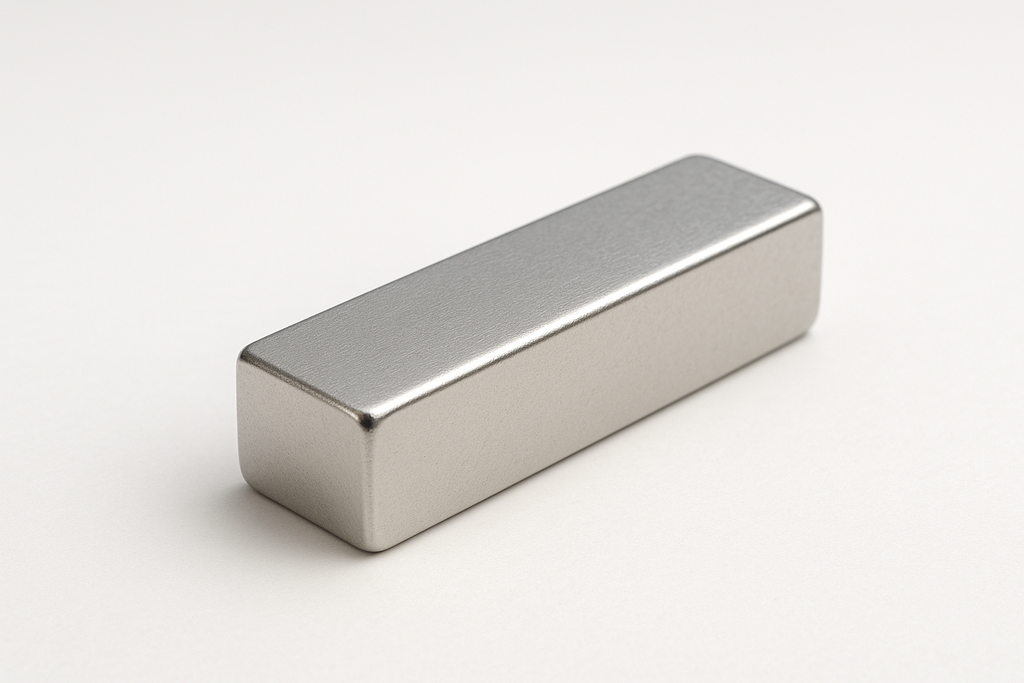

Neodymium Block Magnet — N52
| Grade | Neodymium Iron Boron (NdFeB), Grade N52 |
| Dimensions (Imperial) | 1" (L) × 1/4" (W) × 1/4" (T) |
| Dimensions (Metrics) | 25.4mm (L) × 6.35mm (W) × 6.35mm (T) |
| Tolerances | ±0.004" or ±0.10 mm |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Through Thickness |
| Weight | 7.68 g |
| Pull Force (Magnet to Steel Plate) | 16.28 lbs |
| Pull Force (Magnet between 2 Steel Plates) | 26.54 lbs |
| Surface Field | 5461 Gauss |
| Max Operating Temp | 176ºF (80ºC) |
| Brmax | 14,800 Gauss |
| BHmax | 52 MGOe |
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
