Description
The D42 x 9mm Countersunk Cap Neodymium Magnet Assembly offers exceptional holding strength and durability for both industrial and everyday applications. Built with a powerful N35-grade neodymium magnet encased in a protective steel cup, this unit delivers an impressive 143 lbs (65 kg) of pulling force when mounted on a flat steel surface.
Key Specifications
-
Magnet Diameter: 42mm
-
Magnet Thickness: 9mm
-

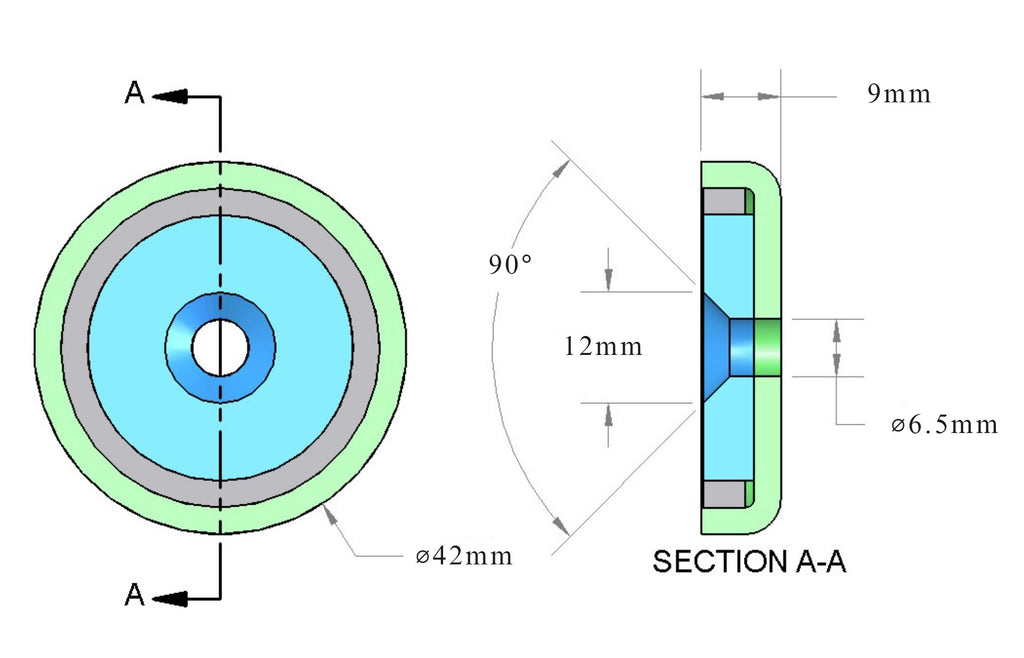

Countersunk Hole: Ø6.5mm (D1) x Ø12mm (D2) — designed for M5 screw mounting
-
Magnet Grade: N35
-
Coating: Magfine's proprietary MF304 Black Epoxy for enhanced corrosion resistance
-
Pulling Force: 143 lbs (65 kg)
-
Included Hardware:
-
316 Stainless Steel Eyelet Hook (M5)
-
316 Stainless Steel Screw (M5)
-
Features & Benefits
-
Countersunk Mounting Hole: Allows for secure and flush installation using the included M5 screw.
-
High Magnetic Strength: Premium N35 neodymium ensures a strong and reliable hold.
-
Corrosion Protection: Black epoxy coating combined with 316 stainless steel components provides excellent resistance against rust and wear.
-
Durable Steel Cup Design: Focuses magnetic force on one side and protects the magnet from damage.
-
Versatile Applications: Ideal for hanging tools, cables, signage, lighting, or fixtures in workshops, warehouses, and marine environments.
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
